Batch Learning from Bandit Feedback¶
Imports¶
import math
import pandas as pd
import numpy as np
import warnings
import seaborn as sns
import matplotlib.pyplot as plt
import sklearn.model_selection
import sklearn.preprocessing
import sklearn.linear_model
from sklearn.linear_model import LogisticRegression
from sklearn.linear_model import LogisticRegressionCV
from sklearn.ensemble.forest import RandomForestClassifier
from sklearn.svm import SVC
from sklearn import preprocessing
from sklearn.datasets import load_digits, load_breast_cancer, load_wine, fetch_openml
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torch.utils.data import Dataset, DataLoader
Utils¶
def create_interactions(X: np.ndarray, T: np.ndarray, one_hot_labeler=None) -> tuple:
if one_hot_labeler is None:
lb_fit = sklearn.preprocessing.LabelBinarizer().fit(T)
else:
lb_fit = one_hot_labeler
T = lb_fit.transform(T)
XT = np.zeros(shape=[X.shape[0], X.shape[1] * T.shape[1]]) * np.nan
cnt = 0
for i in range(X.shape[1]):
for j in range(T.shape[1]):
XT[:,cnt]= X[:, i] * T[:, j]
cnt += 1
X_full = np.column_stack((X, T, XT))
return X_full, lb_fit
Supervised to Bandit Transform (STBT)¶
class STBT:
"""
Performs Supervised to Bandit Conversion for classification
datasets. This conversion is generally used to test the limits of
counterfactual learning in a well-controlled environment [1,2,3].
Parameters
----------
train_frac : float, default: 0.50
It should be between 0.0 and 1.0 and represents the
proportion of the dataset to include in the train split.
permute : bool, default: False
Randomly permute the data before the random split between train and test.
logging_type : str, default: "uniform"
The type of logging policy. If "uniform", uniform random samples from the
labels $y$ to simulate a logging policy. If "biased", the logging policy
is a stochastic function of the covariates.
sample_frac : float, default: None
A sample fraction between (0.0,1.0]. This is the sample fraction of the
training data used to fit the target policy. By default, the full
training set is used.
References
----------
.. [1] N. Jiang, and L. Li, Doubly Robust Off-policy Value Evaluation for Reinforcement Learning,
Proceedings of Machine Learning Research, 48, 652--661, 2016.
.. [2] A. Swaminathan and T. Joachims, Batch Learning from Logged Bandit Feedback through
Counterfactual Risk Minimization, Journal of Machine Learning Research, 16(52),
1731--1755, 2015.
.. [3] A. Swaminathan and T. Joachims, The self-normalized estimator for counterfactual learning,
Advances in Neural Information Processing Systems, 28, 16(52), 3231--3239, 2015.
Examples
--------
>>> np.random.seed(42)
>>> X, y = get_data(dataset='ecoli')
>>> obj = STBT()
>>> sample_batch = obj.generate_batch(X, y)
>>> sample_batch.y_train_logging[0:5]
array([1, 1, 0, 0, 0]))
"""
def __init__(self, train_frac: float = 0.50, permute: bool = False, logging_type: str = 'uniform',
sample_frac: float = None):
self.train_frac = train_frac
self.permute = permute
self.logging_type = logging_type
self.sample_frac = sample_frac
def __repr__(self):
items = ("%s = %r" % (k, v) for k, v in self.__dict__.items())
return "<%s: {%s}>" % (self.__class__.__name__, ', '.join(items))
def _validate_input(self):
if not isinstance(self.train_frac, float) or not (0.0 < self.train_frac < 1.0):
raise ValueError("`train_frac` should be a float in (0.0,1.0), got %s" % self.train_frac)
if self.sample_frac is not None and self.sample_frac is not (0.0 < self.sample_frac <= 1.0):
raise ValueError("`sample_frac` should be a float in (0.0,1.0], got %s" % self.sample_frac)
if self.logging_type not in ['uniform', 'biased']:
raise ValueError("`logging_type` should be either 'uniform' or 'biased', got %s" % self.logging_type)
def _softmax(self, x, axis=-1):
kw = dict(axis=axis, keepdims=True)
xrel = x - x.max(**kw)
exp_xrel = np.exp(xrel)
p = exp_xrel / exp_xrel.sum(**kw)
return p
def generate_batch(self, X: np.ndarray, y: np.ndarray, **kwargs):
"""Generate Supervised to Bandit batch
Parameters
----------
X : array of shape (n_samples, n_features)
Training vector, where n_samples is the number of samples and
n_features is the number of features.
y : array of shape (n_samples,)
Target vector relative to X.
**kwargs : Arguments passed to fit method in
`sklearn.linear_model.LogisticRegression` class.
Returns
-------
X_train : array of shape (n_train_samples, n_features)
y_train : array of shape (n_train_samples,)
X_test : array of shape (n_test_samples, n_features)
y_test : array of shape (n_test_samples,)
y_train_logging : array of shape (n_train_samples,)
Logging policy labels on train data
train_logging_probs : array of shape (n_train_samples, n_classes)
Logging policy probabilities on train data
train_logging_prob : array of shape (n_train_samples,)
Logging policy probability corresponding to the chosen logging label on train data
y_train_logging_idx : array of shape (n_train_samples, n_classes)
Binary matrix with 1s indicating which action was taken by the logging policy in train data
y_test_logging : array of shape (n_test_samples,)
Logging policy labels on test data
test_logging_probs : array of shape (n_test_samples, n_classes)
Logging policy probabilities on test data
test_logging_prob : array of shape (n_test_samples,)
Logging policy probability corresponding to the chosen logging label on test data
y_train_target : array of shape (n_train_samples,)
Target policy labels on train data
train_target_prob : array of shape (n_train_samples, n_classes)
Target policy probabilities on train data
train_target_probs : array of shape (n_train_samples,)
Target policy probability corresponding to the chosen logging label on train data
y_test_target : array of shape (n_test_samples,)
Target policy labels on test data
test_target_prob : array of shape (n_test_samples, n_classes)
Target policy probabilities on test data
test_target_probs : array of shape (n_test_samples,)
Target policy probability corresponding to the chosen logging label on test data
true_target_value_test : float
True value of Target policy on test data
train_logging_reward : array of shape (n_train_samples,)
Observed reward of logging policy on train data
test_logging_reward : array of shape (n_test_samples,)
Observed reward of logging policy on test data
"""
self._validate_input()
self.generate_batch_call = True
self.dual = False
if self.permute:
permute = np.random.permutation(X.shape[0])
X = X[permute, :]
y = y[permute]
self.X_train, self.X_test, self.y_train, self.y_test = \
sklearn.model_selection.train_test_split(X, y,
train_size = self.train_frac)
n_train_samples, n_features = self.X_train.shape
n_test_samples = self.X_test.shape[0]
y_train_u = np.unique(self.y_train)
if self.logging_type == 'uniform':
self.y_train_logging = np.random.choice(y_train_u, size=n_train_samples)
self.train_logging_prob = np.repeat(1.0/len(y_train_u), n_train_samples)
self.train_logging_probs = np.repeat(self.train_logging_prob.reshape(-1,1), len(y_train_u), axis=1)
self.y_test_logging = np.random.choice(y_train_u, size=n_test_samples)
self.test_logging_prob = np.repeat(1.0/len(y_train_u), n_test_samples)
self.test_logging_probs = np.repeat(self.test_logging_prob.reshape(-1,1), len(y_train_u), axis=1)
self.y_train_logging_idx = np.full((n_train_samples, len(y_train_u)), False, dtype=bool)
for i in range(n_train_samples):
self.y_train_logging_idx[i, np.where(y_train_u==self.y_train_logging[i])[0][0]] = True
else:
W = np.random.normal(0, 1, (n_features, len(y_train_u)))
lp_train = self.X_train @ W
lp_test = self.X_test @ W
self.train_logging_probs = self._softmax(lp_train)
self.test_logging_probs = self._softmax(lp_test)
self.y_train_logging_idx = np.full((n_train_samples, len(y_train_u)), False, dtype=bool)
y_test_logging_idx = np.full((n_test_samples, len(y_train_u)), False, dtype=bool)
for sample in range(n_train_samples):
choice = np.random.multinomial(1, self.train_logging_probs[sample,:], size = 1)[-1]
self.y_train_logging_idx[sample, :] = choice
for sample in range(n_test_samples):
choice = np.random.multinomial(1, self.test_logging_probs[sample,:], size = 1)[-1]
y_test_logging_idx[sample, :] = choice
self.y_train_logging = np.array([y_train_u,]*n_train_samples)[self.y_train_logging_idx]
self.y_test_logging = np.array([y_train_u,]*n_test_samples)[y_test_logging_idx]
self.train_logging_prob = self.train_logging_probs[self.y_train_logging_idx]
self.test_logging_prob = self.test_logging_probs[y_test_logging_idx]
if self.sample_frac is not None:
n_subsamples = math.ceil(self.sample_frac * n_train_samples)
idx_subsamples = np.random.randint(n_train_samples, size=n_subsamples)
X_train_subsamples = self.X_train[idx_subsamples, :]
y_train_subsamples = self.y_train[idx_subsamples]
if n_subsamples < n_features:
self.dual=True
target_policy = sklearn.linear_model.LogisticRegression(**kwargs, dual=self.dual).fit(X_train_subsamples, y_train_subsamples)
else:
if n_train_samples < n_features:
self.dual=True
target_policy = sklearn.linear_model.LogisticRegression(**kwargs, dual=self.dual).fit(self.X_train, self.y_train)
self.train_target_probs = target_policy.predict_proba(self.X_train)
self.test_target_probs = target_policy.predict_proba(self.X_test)
y_train_target = list()
train_target_prob = list()
y_test_target = list()
test_target_prob = list()
for i in range(n_train_samples):
y_train_target_i = np.random.choice(y_train_u, size=1,
replace=False, p=self.train_target_probs[i,:])[0]
y_train_target.append(y_train_target_i)
train_target_prob.append(self.train_target_probs[i, np.where(y_train_u==y_train_target_i)[0][0]])
self.y_train_target = np.array(y_train_target)
self.train_target_prob = np.array(train_target_prob)
for i in range(n_test_samples):
y_test_target_i = np.random.choice(y_train_u, size=1,
replace=False, p=self.test_target_probs[i,:])[0]
y_test_target.append(y_test_target_i)
test_target_prob.append(self.test_target_probs[i, np.where(y_train_u==y_test_target_i)[0][0]])
self.y_test_target = np.array(y_test_target)
self.test_target_prob = np.array(test_target_prob)
self.true_target_value_test = np.mean(1 * (self.y_test == self.y_test_target))
self.train_logging_reward = 1 * (self.y_train == self.y_train_logging)
self.test_logging_reward = 1 * (self.y_test == self.y_test_logging)
return self

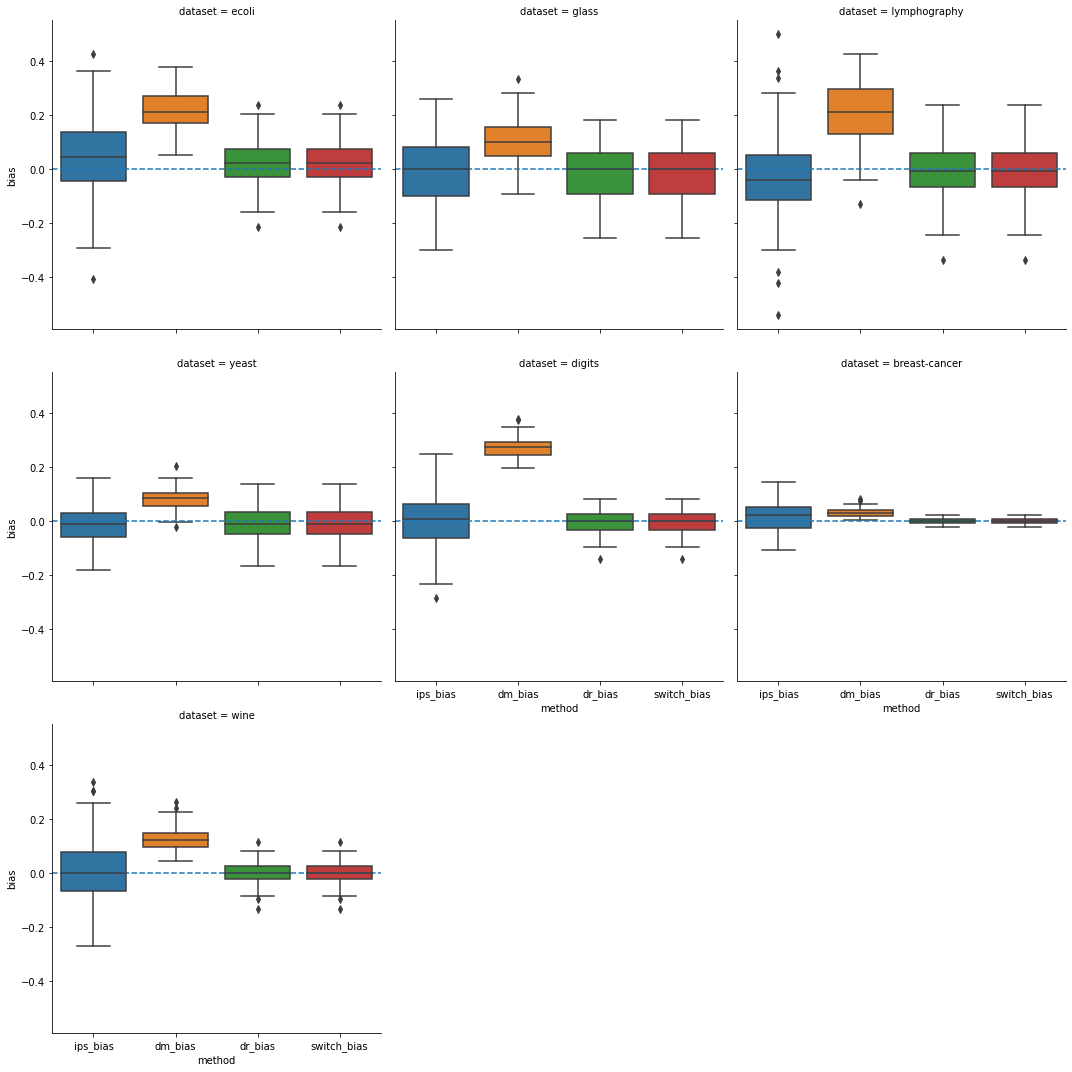

Off-Policy Evaluation Estimators¶
class PolicyEvaluation:
"""
Performs off-policy evaluation with bandit feedback.
Parameters
----------
method : str, default: 'ips'.
The policy evaluation method. The default is 'ips'.
It should be one of: 'ips' (Inverse Propensity Score),
'dm' (Direct Method), 'dr' (Doubly Robust), 'switch'
(SWITCH estimator).
tau : float, default: 0.001.
Hyperparameter added to IPS or SWICTH estimator for numerical stability.
For method='ips', the logging probabilities in the test set get adjusted by
the max(logging probabilities, tau).
For method = 'switch', when logging probabilities are larger than this parameter,
the 'dm' estimator is applied, otherwise the 'dr' estimator is applied.
References
----------
.. [1] Y. Wang, A. Agarwal and M. Dud\'{\i}k, Optimal and Adaptive Off-policy Evaluation in Contextual Bandits,
Proceedings of Machine Learning Research, 70, 3589--3597, 2017.
.. [2] N. Jiang, and L. Li, Doubly Robust Off-policy Value Evaluation for Reinforcement Learning,
Proceedings of Machine Learning Research, 48, 652--661, 2016.
.. [3] K{\"u}nzel, S., Sekhon, J., Bickel, P. and Yu, B., Metalearners for estimating heterogeneous
treatment effects using machine learning, Proceedings of the National Academy of Sciences,
116(10), 4156--4165, 2019.
Examples
--------
>>> np.random.seed(42)
>>> from blbf.STBT import STBT
>>> from blbf.PolicyEvaluation import PolicyEvaluation
>>> X, y = get_data(dataset='ecoli')
>>> obj = STBT(train_frac= 0.5)
>>> data = obj.generate_batch(X, y, max_iter=1000)
>>> PolicyEvaluation(method='dr').evaluate_policy(data = data)
0.7241601514218099
"""
def __init__(self, method: str = 'ips', tau: float = 0.001):
self.method = method
self.tau = tau
valid_methods = ['ips', 'dm', 'dr', 'switch']
if self.method not in valid_methods:
raise ValueError("%s is not a valid method." % self.method)
if self.tau <= 0 or self.tau >1:
raise ValueError("`tau` must be in the (0, 1) interval, got %s." % self.tau)
def __repr__(self):
items = ("%s = %r" % (k, v) for k, v in self.__dict__.items())
return "<%s: {%s}>" % (self.__class__.__name__, ', '.join(items))
def evaluate_policy(self, data, clf: str = 'LogisticRegression', **kwargs) -> float:
"""
Parameters
----------
data : STBT object
This must be a Supervised to Bandit Transform (STBT) class with fitted
`generate_batch` method.
clf : str, default: 'LogisticRegression'
A sklearn classification estimator. Must be one of 'LogisticRegression',
'LogisticRegressionCV', 'RandomForestClassifier', or 'SVC'.
**kwargs : Arguments passed to clf.
Returns
-------
float.
The estimated value of the policy.
"""
if not hasattr(data, 'generate_batch_call'):
raise TypeError("The method `generate_batch` must be called first on the instance: %s." % (data))
if self.method == 'ips':
if self.tau is not None:
adj_test_logging_prob = np.maximum(self.tau, data.test_logging_prob)
else:
adj_test_logging_prob = data.test_logging_prob
v = np.mean(data.test_logging_reward * (data.y_test_logging == data.y_test_target) / adj_test_logging_prob)
else:
XY_train, lb_fit = create_interactions(data.X_train, data.y_train_logging)
m = eval(clf)(**kwargs).fit(XY_train, data.train_logging_reward)
XY_test_target, _ = create_interactions(data.X_test, data.y_test_target, one_hot_labeler = lb_fit)
test_target_pred_reward = m.predict_proba(XY_test_target)[:,1]
if self.method in ['dr', 'switch']:
XY_test_logging, _ = create_interactions(data.X_test, data.y_test_logging, one_hot_labeler = lb_fit)
test_logging_pred_reward = m.predict_proba(XY_test_logging)[:,1]
dr_adj = (data.test_logging_reward - test_logging_pred_reward) * \
(data.y_test_logging == data.y_test_target) / data.test_logging_prob
if self.method == 'dm':
v = np.mean(test_target_pred_reward)
elif self.method == 'dr':
v = np.mean(test_target_pred_reward + dr_adj)
elif self.method == 'switch':
switch_indicator = np.array(data.test_logging_prob <= self.tau, dtype=int)
switch_estimator_rewards = (1-switch_indicator) * (dr_adj + test_target_pred_reward)
switch_estimator_rewards += switch_indicator * test_target_pred_reward
v = np.mean(switch_estimator_rewards)
return v
Sample datasets used in experiments¶
def get_data(dataset: str = None, scale: bool = True) -> tuple:
"""Get data (features and labels) used in experiments.
Parameters
----------
dataset : str, default: None
It should be one of: 'ecoli', 'glass', 'letter-recognition',
'lymphography', 'yeast', 'digits', 'breast-cancer', 'wine', or
'mnist'.
scale : bool, default: True
Standardize features by zero mean and unit variance.
Returns
-------
tuple, length=2
tuple containing features-target split of inputs.
References
----------
Dua, D. and Graff, C. (2019). UCI Machine Learning Repository [http://archive.ics.uci.edu/ml].
Irvine, CA: University of California, School of Information and Computer Science.
Examples
--------
>>> X, y = get_data(dataset='ecoli')
>>> X[0,:]
array([0.49, 0.29, 0.48, 0.5 , 0.56, 0.24, 0.35])
"""
if dataset not in ['ecoli', 'glass', 'letter-recognition', 'lymphography', 'yeast',
'digits', 'breast-cancer', 'wine', 'mnist']:
raise ValueError("Invalid dataset provided.")
if dataset in dataset in ['ecoli', 'glass', 'letter-recognition', 'lymphography', 'yeast']:
path = 'https://archive.ics.uci.edu/ml/machine-learning-databases/'
f = path + dataset + "/" + dataset + ".data"
if dataset in ['ecoli', 'yeast']:
df = pd.read_table(f, delim_whitespace=True, header=None)
elif dataset in [ 'glass', 'letter-recognition', 'lymphography']:
df = pd.read_csv(f, header=None)
elif dataset == 'digits':
df = load_digits()
X = df.data
y = df.target
elif dataset == 'breast-cancer':
df = load_breast_cancer()
X = df.data
y = df.target
elif dataset == 'wine':
df = load_wine()
X = df.data
y = df.target
if dataset == 'ecoli':
y = preprocessing.LabelEncoder().fit_transform(df.iloc[:,-1])
X = df.iloc[:,1:8].values
elif dataset == 'glass':
y = df.iloc[:,-1].values
X = df.iloc[:, 1:(df.shape[1]-1)].values
elif dataset in ['letter-recognition', 'lymphography']:
y = preprocessing.LabelEncoder().fit_transform(df.iloc[:,0])
X = df.iloc[:, 1:(df.shape[1])].values
elif dataset == 'yeast':
y = preprocessing.LabelEncoder().fit_transform(df.iloc[:,-1])
X = df.iloc[:,1:9].values
elif dataset == 'mnist':
X, y = fetch_openml('mnist_784', version=1, return_X_y=True)
y = y.astype('int64')
if scale==True:
scaler = preprocessing.StandardScaler()
X = scaler.fit_transform(X)
return X, y
Compare the following methods¶
IPS: Inverse Propensity Score
DM: Direct Method (Reward Prediction)
DR: Doubly Robust
SWITCH: Switch Estimator
class ComparePolicyEvaluation:
def __init__(self, B: int = 100, datasets: list = None):
self.B = B
self.datasets = datasets
def __repr__(self):
items = ("%s = %r" % (k, v) for k, v in self.__dict__.items())
return "<%s: {%s}>" % (self.__class__.__name__, ', '.join(items))
def fit_policies(self, **kwargs) -> pd.DataFrame:
if self.datasets is None:
self.datasets = ['ecoli', 'glass', 'lymphography', 'yeast',
'digits', 'breast-cancer', 'wine'] # 'letter-recognition'
dat = list()
true_value = list()
ips = list()
dm = list()
dr = list()
switch = list()
for s in self.datasets:
for b in range(self.B):
if (b % 10) == 0:
print("Sample: %d - Dataset: %s" % (b, s))
X, y = get_data(dataset=s)
d = STBT().generate_batch(X, y, max_iter=1000)
dat.append(s)
true_value.append(d.true_target_value_test)
ips.append(PolicyEvaluation(method='ips').evaluate_policy(data = d))
dm.append(PolicyEvaluation(method='dm').evaluate_policy(data = d, **kwargs))
dr.append(PolicyEvaluation(method='dr').evaluate_policy(data = d, **kwargs))
switch.append(PolicyEvaluation(method='switch').evaluate_policy(data = d, **kwargs))
res = pd.DataFrame.from_dict({'dataset':dat, 'true_value':true_value, 'ips':ips,
'dm': dm, 'dr':dr, 'switch': switch})
# Bias
res['ips_bias'] = res['true_value'].values - res['ips'].values
res['dm_bias'] = res['true_value'].values - res['dm'].values
res['dr_bias'] = res['true_value'].values - res['dr'].values
res['switch_bias'] = res['true_value'].values - res['switch'].values
# Relative risk
res['ips_rr'] = np.abs((res['true_value'].values - res['ips'].values)/res['true_value'].values)
res['dm_rr'] = np.abs((res['true_value'].values - res['dm'].values)/res['true_value'].values)
res['dr_rr'] = np.abs((res['true_value'].values - res['dr'].values)/res['true_value'].values)
res['switch_rr'] = np.abs((res['true_value'].values - res['switch'].values)/res['true_value'].values)
self.res = res
return self
def get_summary_stats(self):
res_summary = self.res.groupby(['dataset'], as_index=False).agg({
'ips_bias': ['mean','std'],
'dm_bias': ['mean','std'],
'dr_bias': ['mean','std'],
'switch_bias': ['mean','std'],
'ips_rr': ['mean','std'],
'dm_rr': ['mean','std'],
'dr_rr': ['mean','std'],
'switch_rr': ['mean','std']
})
self.res_summary = res_summary
return self
def plot_bias(self):
res_long = pd.melt(self.res, id_vars=['dataset'], var_name = 'method', value_name = "bias",
value_vars=['ips_bias', 'dm_bias', 'dr_bias', 'switch_bias'])
ax = sns.catplot(x="method", y="bias", col = "dataset", kind = "box",
col_wrap=3, data=res_long)
for i in range(len(ax.axes)):
ax_i = ax.axes[i]
ax_i.axhline(0, ls="--")
plt.show()
cpe = ComparePolicyEvaluation(B=100).fit_policies(max_iter=1000)
Sample: 0 - Dataset: ecoli
Sample: 10 - Dataset: ecoli
Sample: 20 - Dataset: ecoli
Sample: 30 - Dataset: ecoli
Sample: 40 - Dataset: ecoli
Sample: 50 - Dataset: ecoli
Sample: 60 - Dataset: ecoli
Sample: 70 - Dataset: ecoli
Sample: 80 - Dataset: ecoli
Sample: 90 - Dataset: ecoli
Sample: 0 - Dataset: glass
Sample: 10 - Dataset: glass
Sample: 20 - Dataset: glass
Sample: 30 - Dataset: glass
Sample: 40 - Dataset: glass
Sample: 50 - Dataset: glass
Sample: 60 - Dataset: glass
Sample: 70 - Dataset: glass
Sample: 80 - Dataset: glass
Sample: 90 - Dataset: glass
Sample: 0 - Dataset: lymphography
Sample: 10 - Dataset: lymphography
Sample: 20 - Dataset: lymphography
Sample: 30 - Dataset: lymphography
Sample: 40 - Dataset: lymphography
Sample: 50 - Dataset: lymphography
Sample: 60 - Dataset: lymphography
Sample: 70 - Dataset: lymphography
Sample: 80 - Dataset: lymphography
Sample: 90 - Dataset: lymphography
Sample: 0 - Dataset: yeast
Sample: 10 - Dataset: yeast
Sample: 20 - Dataset: yeast
Sample: 30 - Dataset: yeast
Sample: 40 - Dataset: yeast
Sample: 50 - Dataset: yeast
Sample: 60 - Dataset: yeast
Sample: 70 - Dataset: yeast
Sample: 80 - Dataset: yeast
Sample: 90 - Dataset: yeast
Sample: 0 - Dataset: digits
Sample: 10 - Dataset: digits
Sample: 20 - Dataset: digits
Sample: 30 - Dataset: digits
Sample: 40 - Dataset: digits
Sample: 50 - Dataset: digits
Sample: 60 - Dataset: digits
Sample: 70 - Dataset: digits
Sample: 80 - Dataset: digits
Sample: 90 - Dataset: digits
Sample: 0 - Dataset: breast-cancer
Sample: 10 - Dataset: breast-cancer
Sample: 20 - Dataset: breast-cancer
Sample: 30 - Dataset: breast-cancer
Sample: 40 - Dataset: breast-cancer
Sample: 50 - Dataset: breast-cancer
Sample: 60 - Dataset: breast-cancer
Sample: 70 - Dataset: breast-cancer
Sample: 80 - Dataset: breast-cancer
Sample: 90 - Dataset: breast-cancer
Sample: 0 - Dataset: wine
Sample: 10 - Dataset: wine
Sample: 20 - Dataset: wine
Sample: 30 - Dataset: wine
Sample: 40 - Dataset: wine
Sample: 50 - Dataset: wine
Sample: 60 - Dataset: wine
Sample: 70 - Dataset: wine
Sample: 80 - Dataset: wine
Sample: 90 - Dataset: wine
cpe.get_summary_stats()
cpe.res_summary
| dataset | ips_bias | dm_bias | dr_bias | switch_bias | ips_rr | dm_rr | dr_rr | switch_rr | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mean | std | mean | std | mean | std | mean | std | mean | std | mean | std | mean | std | mean | std | ||
| 0 | breast-cancer | 0.015439 | 0.056258 | 0.031097 | 0.014548 | 0.002050 | 0.009696 | 0.002050 | 0.009696 | 0.051048 | 0.033579 | 0.032639 | 0.015079 | 0.008363 | 0.006185 | 0.008363 | 0.006185 |
| 1 | digits | -0.000356 | 0.099657 | 0.271003 | 0.036489 | -0.003003 | 0.045847 | -0.003003 | 0.045847 | 0.086759 | 0.063050 | 0.291985 | 0.039215 | 0.039939 | 0.029041 | 0.039939 | 0.029041 |
| 2 | ecoli | 0.036131 | 0.159114 | 0.221680 | 0.069068 | 0.021395 | 0.082412 | 0.021395 | 0.082412 | 0.168851 | 0.126703 | 0.288876 | 0.088675 | 0.086244 | 0.068031 | 0.086244 | 0.068031 |
| 3 | glass | -0.005234 | 0.135409 | 0.108039 | 0.077705 | -0.015941 | 0.102587 | -0.015941 | 0.102587 | 0.231339 | 0.168950 | 0.231582 | 0.136500 | 0.177798 | 0.135564 | 0.177798 | 0.135564 |
| 4 | lymphography | -0.030135 | 0.166516 | 0.210184 | 0.112056 | -0.006171 | 0.097335 | -0.006171 | 0.097335 | 0.166880 | 0.141465 | 0.278812 | 0.132798 | 0.100086 | 0.078494 | 0.100086 | 0.078494 |
| 5 | wine | 0.004831 | 0.121543 | 0.123857 | 0.042780 | -0.000622 | 0.038650 | -0.000622 | 0.038650 | 0.099961 | 0.082773 | 0.132158 | 0.045198 | 0.031962 | 0.026401 | 0.031962 | 0.026401 |
| 6 | yeast | -0.010755 | 0.071710 | 0.080556 | 0.037969 | -0.006330 | 0.058608 | -0.006330 | 0.058608 | 0.127633 | 0.097028 | 0.178583 | 0.078501 | 0.105852 | 0.077361 | 0.105852 | 0.077361 |
cpe.plot_bias()
_15_0.png)
Off-Policy Learning Estimators¶
class EvaluationMetrics:
def __init__(self) -> None:
pass
@staticmethod
def error_rate(y_pred, y) -> float:
er = 1 - np.mean(1 * (y_pred == y))
return er
class BanditDataset(Dataset):
def __init__(self, X, y, p0, r, y_idx):
self.X = X
self.y = y
self.p0 = p0
self.r = r
self.y_idx = y_idx
def __getitem__(self, index):
return self.X[index], self.y[index], self.p0[index], self.r[index], self.y_idx[index]
def __len__ (self):
return len(self.X)
class LinearModel(torch.nn.Module):
def __init__(self, n_features, n_actions):
super(LinearModel, self).__init__()
self.linear = torch.nn.Linear(n_features, n_actions)
def forward(self, x):
xw_plus_b = self.linear(x)
return xw_plus_b # batch size x n_actions
class NonLinearModel(torch.nn.Module):
def __init__(self, n_features, n_actions, n_hidden=3):
super().__init__()
self.l1 = nn.Linear(n_features,n_hidden)
self.l2 = nn.Linear(n_hidden,n_actions)
def forward(self, x):
return self.l2(F.relu(self.l1(x)))
class RewardPredictor(EvaluationMetrics):
"""
Performs policy learning using by directly predicting the Reward as a function of covariates,
actions and their interaction.
References
----------
.. [1] A. Swaminathan and T. Joachims, Batch Learning from Logged Bandit Feedback through
Counterfactual Risk Minimization, Journal of Machine Learning Research, 16(52),
1731--1755, 2015.
.. [2] A. Swaminathan and T. Joachims, The self-normalized estimator for counterfactual learning,
Advances in Neural Information Processing Systems, 28, 16(52), 3231--3239, 2015.
.. [3] A. Swaminathan, T. Joachims, and M. de Rijke, Deep Learning with Logged Bandit Feedback,
International Conference on Learning Representations, 2018.
"""
def __init__(self) -> None:
pass
def __repr__(self) -> str:
items = ("%s = %r" % (k, v) for k, v in self.__dict__.items())
return "<%s: {%s}>" % (self.__class__.__name__, ', '.join(items))
def learn_policy(self, data, clf: str = 'LogisticRegression', **kwargs) -> None:
"""
Parameters
----------
data : STBT object
This must be a Supervised to Bandit Transform (STBT) class with fitted
`generate_batch` method.
clf : str, default: 'LogisticRegression'
A sklearn classification estimator. Must be one of 'LogisticRegression',
'LogisticRegressionCV', 'RandomForestClassifier', or 'SVC'.
**kwargs : Arguments passed to clf.
Returns
-------
int.
The predicted best policy.
"""
XY_train, lb_fit = create_interactions(data.X_train, data.y_train_logging)
y_train_logging_u = np.unique(data.y_train_logging)
self.train_pred_reward_arr = np.zeros(shape=[data.X_train.shape[0], len(y_train_logging_u)])
self.test_pred_reward_arr = np.zeros(shape=[data.X_test.shape[0], len(y_train_logging_u)])
m = eval(clf)(**kwargs).fit(XY_train, data.train_logging_reward)
for i, yval in enumerate(y_train_logging_u):
XY_train_yval, _ = create_interactions(data.X_train, np.repeat(yval, data.X_train.shape[0]), one_hot_labeler = lb_fit)
XY_test_yval, _ = create_interactions(data.X_test, np.repeat(yval, data.X_test.shape[0]), one_hot_labeler = lb_fit)
self.train_pred_reward_arr[:,i] = m.predict_proba(XY_train_yval)[:,1]
self.test_pred_reward_arr[:,i] = m.predict_proba(XY_test_yval)[:,1]
self.est_best_policy = np.array(y_train_logging_u[np.argmax(self.test_pred_reward_arr, axis=1)])
return self
class OutcomeWeightedLearning(EvaluationMetrics):
"""
Performs policy learning by transforming the learning problem into a
weighted multi-class classification problem.
References
----------
.. [1] Y. Zhao, D. Zeng, A.J. Rush and M. R. Kosorok, Estimating Individualized Treatment
Rules Using Outcome Weighted Learning, Journal of the American Statistical Association,
107:499, 1106-1118, 2012, DOI: 10.1080/01621459.2012.695674.
"""
def __init__(self) -> None:
pass
def __repr__(self) -> str:
items = ("%s = %r" % (k, v) for k, v in self.__dict__.items())
return "<%s: {%s}>" % (self.__class__.__name__, ', '.join(items))
def learn_policy(self, data, clf: str = 'SVC', **kwargs) -> None:
"""
Parameters
----------
data : STBT object
This must be a Supervised to Bandit Transform (STBT) class with fitted
`generate_batch` method.
clf : str, default: 'SVC'
A sklearn classification estimator. Must be one of 'LogisticRegression',
'LogisticRegressionCV', 'RandomForestClassifier', or 'SVC'.
**kwargs : Arguments passed to clf.
Returns
-------
int.
The predicted best policy.
"""
wt = data.train_logging_reward / data.train_logging_prob
if clf in ['SVC', 'RandomForestClassifier']:
m = eval(clf)(**kwargs).fit(data.X_train, data.y_train_logging, sample_weight = wt)
elif clf in ['LogisticRegression', 'LogisticRegressionCV']:
m = eval(clf)(multi_class='multinomial', **kwargs).fit(data.X_train, data.y_train_logging, sample_weight = wt)
self.est_best_policy = m.predict(data.X_test)
return self
class VowpalWabbit(EvaluationMetrics):
"""
Performs policy learning using Vowpal Wabbit.
Parameters
----------
method : str, default: 'ips'
The policy evaluation approach to optimize a policy. Vowpal Wabbit offers four
approaches to specify a contextual bandit approach:
* Inverse Propensity Score: 'ips'
* Doubly Robust: 'dr'
* Direct Method: 'dm'
* Multi Task Regression/Importance Weighted Regression: 'mtr'
References
----------
.. [1] A. Bietti and A. Agarwal and J. Langford, A Contextual Bandit Bake-off,
arXiv preprint arXiv:1802.04064, 2018.
"""
def __init__(self, method = 'dr') -> None:
self.method = method
def __repr__(self) -> str:
items = ("%s = %r" % (k, v) for k, v in self.__dict__.items())
return "<%s: {%s}>" % (self.__class__.__name__, ', '.join(items))
def _train_vw(self, data):
n_actions = len(np.unique(data.y_train_logging))
vw = pyvw.vw(str("--cb_type") + " " + self.method + " " + str(n_actions))
for i in range(data.X_train.shape[0]):
action = data.y_train_logging[i]
cost = 1 - data.train_logging_reward[i] # input requires cost instead of reward
probability = data.train_logging_prob[i]
train_features_ls = list()
for f in range(data.X_train.shape[1]):
train_features_ls.append(str(data.X_train[i, f]))
train_features = " ".join(train_features_ls)
learn_example = str(action) + ":" + str(cost) + ":" + str(probability) + " | " + train_features
vw.learn(learn_example)
return vw
def _predict_vw(self, vw_object, data):
test_features_ls = list()
predictions = list()
for i in range(data.X_test.shape[0]):
for f in range(data.X_test.shape[1]):
test_features_ls.append(str(data.X_test[i, f]))
features = " ".join(test_features_ls)
test_example = " | " + features
pred = vw_object.predict(test_example)
predictions.append(pred)
predictions = np.array(predictions)
return predictions
def learn_policy(self, data) -> None:
"""
Parameters
----------
data : STBT object
This must be a Supervised to Bandit Transform (STBT) class with fitted
`generate_batch` method.
Returns
-------
int.
The predicted best policy.
"""
vw_fit = self._train_vw(data)
self.est_best_policy = self._predict_vw(vw_fit, data)
return self
class CounterfactualRiskMinimization(EvaluationMetrics):
"""
Performs policy learning using the Counterfactual Risk Minimization
approach proposed in [1], and later refined in [2].
Parameters
----------
batch_size : int, default: 96
The number of samples per batch to load
learning_rate : float, default: 0.01
Stochastic gradient descent learning rate
weight_decay : float, default: 0.001
L2 regularization on parameters
lambda_ : float, default: 0.1
Variance regularization. Penalty on the variance of the
learnt policy relative to the logging policy.
self_normalize: bool, default: True
Whether to normalize the IPS estimator. See [2].
clipping: float, default: 100.
Clipping the importance sample weights. See [1].
verbose: bool, default: False
Whether to print Poem Loss during training .
References
----------
.. [1] A. Swaminathan and T. Joachims, Batch Learning from Logged Bandit Feedback through
Counterfactual Risk Minimization, Journal of Machine Learning Research, 16(52),
1731--1755, 2015.
.. [2] A. Swaminathan and T. Joachims, The self-normalized estimator for counterfactual learning,
Advances in Neural Information Processing Systems, 28, 16(52), 3231--3239, 2015.
.. [3] A. Swaminathan, T. Joachims, and M. de Rijke, Deep Learning with Logged Bandit Feedback,
International Conference on Learning Representations, 2018.
"""
def __init__(self, batch_size: int = 96, learning_rate: float = 0.001, weight_decay: float = 0.001,
lambda_: float = 0.5, self_normalize: bool = True, clipping : float = 100.,
verbose: bool = False) -> None:
self.batch_size = batch_size
self.learning_rate = learning_rate
self.weight_decay = weight_decay
self.lambda_ = lambda_
self.self_normalize = self_normalize
self.clipping = clipping
self.verbose = verbose
def __repr__(self) -> str:
items = ("%s = %r" % (k, v) for k, v in self.__dict__.items())
return "<%s: {%s}>" % (self.__class__.__name__, ', '.join(items))
def _poem_loss(self, pi, p0, r, y_idx, Lambda):
if torch.sum(r) == 0:
r = torch.repeat_interleave(torch.tensor(1e-05, dtype=torch.float), len(r))
bsz = pi.shape[0]
softmax_pi = F.softmax(pi, dim=1)
pi_i = softmax_pi.masked_select(y_idx)
log_importance = torch.log(pi_i) - torch.log(p0)
importance = torch.exp(log_importance)
clip_importance_vals = torch.repeat_interleave(torch.tensor(self.clipping, dtype=torch.float), len(importance))
importance = torch.min(clip_importance_vals, importance)
off_policy_est = torch.mul(importance, r)
# Eq.(8) in [2]
var_n = torch.sum(torch.mul(torch.pow(torch.sub(r, off_policy_est), 2), torch.pow(torch.div(pi_i, p0), 2)))
var_d = torch.pow(torch.sum(torch.div(pi_i, p0)), 2)
empirical_var = torch.div(var_n, var_d)
if self.self_normalize:
effective_sample_size = torch.sum(importance).detach() # turns off requires grad
mean_off_policy_est = torch.div(torch.sum(off_policy_est), effective_sample_size)
else:
mean_off_policy_est = torch.mean(off_policy_est)
penalty = torch.mul(Lambda, torch.sqrt(torch.div(empirical_var, bsz)))
loss = torch.mul(-1.0, mean_off_policy_est) + penalty
return loss
def learn_policy(self, model, data, epochs: int = 500) -> None:
"""
Parameters
----------
data : STBT object
This must be a Supervised to Bandit Transform (STBT) class with fitted
`generate_batch` method.
epochs : int, default
Number of training epochs.
Returns
-------
int.
The predicted best policy.
"""
train_ds = BanditDataset(torch.from_numpy(data.X_train).float(),
torch.from_numpy(data.y_train_logging).long(),
torch.from_numpy(data.train_logging_prob).float(),
torch.from_numpy(data.train_logging_reward).long(),
torch.from_numpy(data.y_train_logging_idx).bool())
n_features = train_ds.X.shape[1]
actions = torch.unique(train_ds.y)
n_actions = len(actions)
train_dl = DataLoader(train_ds, self.batch_size)
Model = model(n_features = n_features, n_actions = n_actions)
optimizer = torch.optim.Adam(Model.parameters(), lr=self.learning_rate, weight_decay=self.weight_decay)
for epoch in range(epochs):
Model.train()
train_epoch_loss = 0.
for x_batch,y_batch,p0_batch,r_batch,y_idx_batch in train_dl:
pi = Model(x_batch)
loss = self._poem_loss(pi, p0_batch, r_batch, y_idx_batch, self.lambda_)
loss.backward()
optimizer.step()
optimizer.zero_grad()
train_epoch_loss += loss.item()
if self.verbose:
if epoch % 100 == 0:
print(f'Epoch {epoch}: | Train Poem Loss: {train_epoch_loss/len(train_dl):.5f}')
Model.eval()
with torch.no_grad():
X_test = torch.from_numpy(data.X_test).float()
pred = Model(X_test)
est_best_policy = actions[torch.argmax(pred, dim=1)]
self.est_best_policy = est_best_policy.numpy()
return self
class CounterfactualRiskMinimizationCV(CounterfactualRiskMinimization, EvaluationMetrics):
"""
Tune variance penalty for Counterfactual Risk Minimization.
Parameters
----------
batch_size : int, default: 96
The number of samples per batch to load
learning_rate : float, default: 0.01
Stochastic gradient descent learning rate
weight_decay : float, default: 0.001
L2 regularization on parameters
self_normalize: bool, default: True
Whether to normalize the IPS estimator. See [2].
clipping: float, default: 100.
Clipping the importance sample weights. See [1].
verbose: bool, default: True
Whether to print Poem Loss during training .
lambda_ : 1D array, optional, defaults to grid of values
chosen in a logarithmic scale between 1e-4 and 1e+01.
"""
def __init__(self, batch_size: int = 96, learning_rate: float = 0.001, weight_decay: float = 0.001,
self_normalize: bool = True, clipping : float = 100., verbose: bool = False,
lambda_: np.ndarray = None) -> None:
self.batch_size = batch_size
self.learning_rate = learning_rate
self.weight_decay = weight_decay
self.self_normalize = self_normalize
self.clipping = clipping
self.verbose = verbose
if lambda_ is None:
self.lambda_ = 10 ** np.linspace(-4., 1., 10) # search in log scale
else:
self.lambda_= lambda_
def __repr__(self) -> str:
items = ("%s = %r" % (k, v) for k, v in self.__dict__.items())
return "<%s: {%s}>" % (self.__class__.__name__, ', '.join(items))
def _get_params_min_loss(self, x):
x = x.numpy()
xmin_idx = np.unravel_index(x.argmin(), x.shape)
l_best = self.lambda_[xmin_idx[0]]
return l_best
def learn_policy(self, model, data, valid_frac: float = 0.5, epochs: int = 500) -> None:
"""
Parameters
----------
data : STBT object
This must be a Supervised to Bandit Transform (STBT) class with fitted
`generate_batch` method.
valid_frac : float, default: 0.5
Fraction of training data set for validation. Test data are not modified.
epochs : int, default: 500
Number of training epochs.
Returns
-------
int.
The predicted best policy.
"""
self.epochs = epochs
self.valid_frac = valid_frac
n_train_samples, n_features = data.X_train.shape
idx_valid_samples = np.random.choice(range(n_train_samples),
size = int(np.floor(n_train_samples * valid_frac)), replace = False)
train_ds = BanditDataset(torch.from_numpy(np.delete(data.X_train, idx_valid_samples, axis=0)).float(),
torch.from_numpy(np.delete(data.y_train_logging, idx_valid_samples)).long(),
torch.from_numpy(np.delete(data.train_logging_prob, idx_valid_samples)).float(),
torch.from_numpy(np.delete(data.train_logging_reward, idx_valid_samples)).long(),
torch.from_numpy(np.delete(data.y_train_logging_idx, idx_valid_samples, axis=0)).bool())
valid_ds = BanditDataset(torch.from_numpy(data.X_train[idx_valid_samples, :]).float(),
torch.from_numpy(data.y_train_logging[idx_valid_samples]).long(),
torch.from_numpy(data.train_logging_prob[idx_valid_samples]).float(),
torch.from_numpy(data.train_logging_reward[idx_valid_samples]).long(),
torch.from_numpy(data.y_train_logging_idx[idx_valid_samples, :]).bool())
y_train = np.delete(data.y_train, idx_valid_samples, axis=0)
y_valid = data.y_train[idx_valid_samples]
X_test = torch.from_numpy(data.X_test).float()
actions = torch.unique(train_ds.y)
n_actions = len(actions)
train_dl = DataLoader(train_ds, self.batch_size)
valid_dl = DataLoader(valid_ds, self.batch_size)
Model = model(n_features=n_features, n_actions=n_actions)
optimizer = torch.optim.Adam(Model.parameters(), lr=self.learning_rate, weight_decay=self.weight_decay)
self.train_tot_loss_hist = torch.zeros(len(self.lambda_), epochs)
self.valid_tot_loss_hist = torch.zeros(len(self.lambda_), epochs)
self.valid_acc = torch.zeros(len(self.lambda_), epochs)
self.train_acc = torch.zeros(len(self.lambda_), epochs)
self.test_acc = torch.zeros(len(self.lambda_), epochs)
for l_idx, l in enumerate(self.lambda_):
for epoch in range(epochs):
Model.train()
train_epoch_loss = 0.
for x_batch,y_batch,p0_batch,r_batch,y_idx_batch in train_dl:
pi = Model(x_batch)
loss = self._poem_loss(pi, p0_batch, r_batch, y_idx_batch, l)
loss.backward()
optimizer.step()
optimizer.zero_grad()
train_epoch_loss += loss.item()
self.train_tot_loss_hist[l_idx, epoch] = train_epoch_loss/len(train_dl)
if self.verbose:
if epoch % 100 == 0:
print(f'Epoch: {epoch} | Train Poem Loss: {train_epoch_loss/len(train_dl):.5f}')
Model.eval()
with torch.no_grad():
valid_tot_loss=0.
for x_batch,y_batch,p0_batch,r_batch,y_idx_batch in valid_dl:
pi = Model(x_batch)
valid_loss = self._poem_loss(pi, p0_batch, r_batch, y_idx_batch, l)
valid_tot_loss += valid_loss.item()
self.valid_tot_loss_hist[l_idx, epoch] = valid_tot_loss/len(valid_dl)
if self.verbose:
if epoch % 100 == 0:
print(f'Epoch: {epoch} | Valid Poem Loss: {valid_tot_loss/len(valid_dl):.5f}')
pred_train = Model(train_ds.X)
est_best_policy_train = actions[torch.argmax(pred_train, dim=1)]
est_best_policy_train = est_best_policy_train.numpy()
self.train_acc[l_idx, epoch] = self.error_rate(est_best_policy_train, y_train)
pred_valid = Model(valid_ds.X)
est_best_policy_valid = actions[torch.argmax(pred_valid, dim=1)]
est_best_policy_valid = est_best_policy_valid.numpy()
self.valid_acc[l_idx, epoch] = self.error_rate(est_best_policy_valid, y_valid)
pred_test = Model(X_test)
est_best_policy_test = actions[torch.argmax(pred_test, dim=1)]
est_best_policy_test = est_best_policy_test.numpy()
self.test_acc[l_idx, epoch] = self.error_rate(est_best_policy_test, data.y_test)
self.l_best = self._get_params_min_loss(self.valid_tot_loss_hist)
crm = CounterfactualRiskMinimization(lambda_=self.l_best, batch_size = self.batch_size,
learning_rate = self.learning_rate, weight_decay = self.weight_decay,
clipping = self.clipping, self_normalize = self.self_normalize, verbose = self.verbose)
crm.learn_policy(model=model, data=data, epochs=epochs)
self.est_best_policy = crm.est_best_policy
return self
def plot_cv_loss(self):
train_loss_flatten = self.train_tot_loss_hist.T.flatten(1).numpy()
valid_loss_flatten = self.valid_tot_loss_hist.T.flatten(1).numpy()
train_acc_flatten = self.train_acc.T.flatten(1).numpy()
valid_acc_flatten = self.valid_acc.T.flatten(1).numpy()
test_acc_flatten = self.test_acc.T.flatten(1).numpy()
fig, axs = plt.subplots(2, 3)
fs = 8
for l_idx, l in enumerate(self.lambda_):
axs[0, 0].plot(train_loss_flatten[:,l_idx], label = round(l, 4))
axs[0, 1].plot(valid_loss_flatten[:,l_idx], label = round(l, 4))
axs[1, 0].plot(train_acc_flatten[:,l_idx], label = round(l, 4))
axs[1, 1].plot(valid_acc_flatten[:,l_idx], label = round(l, 4))
axs[1, 2].plot(test_acc_flatten[:,l_idx], label = round(l, 4))
axs[0, 0].set_title("Train: Poem Loss", fontsize=fs)
axs[0, 1].set_title("Validation: Poem Loss", fontsize=fs)
axs[1, 0].set_title("Train: Accuracy", fontsize=fs)
axs[1, 1].set_title("Validation: Accuracy", fontsize=fs)
axs[1, 2].set_title("Test: Accuracy", fontsize=fs)
for i, ax in enumerate(axs.flat):
if i < 2:
ax.set_xlabel(xlabel='Epoch', fontsize=fs)
ax.set_ylabel(ylabel='Loss', fontsize=fs)
else:
ax.set_xlabel(xlabel='Epoch', fontsize=fs)
ax.set_ylabel(ylabel='Accuracy', fontsize=fs)
fig.legend(self.lambda_, loc='upper right', fontsize=fs)
Alternative using Doubly Robust (as opposed to the IPS estimator)¶
# class CounterfactualRiskMinimization(EvaluationMetrics):
# """
# Performs policy learning using the Counterfactual Risk Minimization
# approach proposed in [1], and later refined in [2].
# Parameters
# ----------
# batch_size : int, default: 96
# The number of samples per batch to load
# learning_rate : float, default: 0.01
# Stochastic gradient descent learning rate
# weight_decay : float, default: 0.001
# L2 regularization on parameters
# lambda_ : float, default: 0.1
# Variance regularization. Penalty on the variance of the
# learnt policy relative to the logging policy.
# self_normalize: bool, default: True
# Whether to normalize the IPS estimator. See [2].
# clipping: float, default: 100.
# Clipping the importance sample weights. See [1].
# verbose: bool, default: False
# Whether to print Poem Loss during training .
# References
# ----------
# .. [1] A. Swaminathan and T. Joachims, Batch Learning from Logged Bandit Feedback through
# Counterfactual Risk Minimization, Journal of Machine Learning Research, 16(52),
# 1731--1755, 2015.
# .. [2] A. Swaminathan and T. Joachims, The self-normalized estimator for counterfactual learning,
# Advances in Neural Information Processing Systems, 28, 16(52), 3231--3239, 2015.
# .. [3] A. Swaminathan, T. Joachims, and M. de Rijke, Deep Learning with Logged Bandit Feedback,
# International Conference on Learning Representations, 2018.
# """
# def __init__(self, batch_size: int = 96, learning_rate: float = 0.01, weight_decay: float = 0.001,
# lambda_: float = 0.5, self_normalize: bool = True, clipping : float = 100.,
# verbose: bool = False) -> None:
# self.batch_size = batch_size
# self.learning_rate = learning_rate
# self.weight_decay = weight_decay
# self.lambda_ = lambda_
# self.self_normalize = self_normalize
# self.verbose = verbose
# self.clipping = clipping
# def __repr__(self) -> str:
# items = ("%s = %r" % (k, v) for k, v in self.__dict__.items())
# return "<%s: {%s}>" % (self.__class__.__name__, ', '.join(items))
# def _poem_loss(self, pi, p0, r, r_pred, y_idx, Lambda, self_normalize):
# #if torch.sum(r) == 0:
# # r = torch.repeat_interleave(torch.tensor(1e-05, dtype=torch.float), len(r))
# bsz = pi.shape[0]
# softmax_pi = F.softmax(pi, dim=1)
# pi_i = softmax_pi.masked_select(y_idx)
# r_pred_i = r_pred.masked_select(y_idx)
# importance = torch.div(pi_i, p0)
# clip_importance_vals = torch.repeat_interleave(torch.tensor(self.clipping, dtype=torch.float), len(importance))
# importance_clipped = torch.min(clip_importance_vals, importance)
# reward_residual = torch.sub(r, r_pred_i)
# weighted_reward_pred = torch.sum(torch.mul(softmax_pi, r_pred), dim=1)
# off_policy_est = torch.add(torch.mul(importance_clipped, reward_residual), weighted_reward_pred)
# empirical_var = torch.var(off_policy_est)
# if self_normalize:
# effective_sample_size = torch.sum(importance_clipped).detach() # turns off requires grad
# sum_off_policy_est = torch.div(torch.sum(off_policy_est), effective_sample_size)
# else:
# sum_off_policy_est = torch.sum(off_policy_est)
# penalty = torch.mul(Lambda, torch.sqrt(torch.div(empirical_var, bsz)))
# loss = torch.mul(-1.0, sum_off_policy_est) + penalty
# return loss
# def learn_policy(self, model, data, epochs: int = 500) -> None:
# """
# Parameters
# ----------
# data : STBT object
# This must be a Supervised to Bandit Transform (STBT) class with fitted
# `generate_batch` method.
# epochs : int, default
# Number of training epochs.
# Returns
# -------
# int.
# The predicted best policy.
# """
# rp = RewardPredictor().learn_policy(data=data, max_iter=1000)
# train_ds = BanditDataset(torch.from_numpy(data.X_train).float(),
# torch.from_numpy(data.y_train_logging).long(),
# torch.from_numpy(data.train_logging_prob).float(),
# torch.from_numpy(data.train_logging_reward).long(),
# torch.from_numpy(data.y_train_logging_idx).bool(),
# torch.from_numpy(rp.train_pred_reward_arr).float()
# )
# n_features = train_ds.X.shape[1]
# actions = torch.unique(train_ds.y)
# n_actions = len(actions)
# train_dl = DataLoader(train_ds, self.batch_size)
# Model = model(n_features = n_features, n_actions = n_actions)
# optimizer = torch.optim.SGD(Model.parameters(), lr=self.learning_rate, weight_decay=self.weight_decay)
# for epoch in range(epochs):
# Model.train()
# train_epoch_loss = 0.
# for x_batch, y_batch, p0_batch, r_batch, y_idx_batch, r_pred_batch in train_dl:
# pi = Model(x_batch)
# loss = self._poem_loss(pi, p0_batch, r_batch, r_pred_batch, y_idx_batch, self.lambda_, self.self_normalize)
# loss.backward()
# optimizer.step()
# optimizer.zero_grad()
# train_epoch_loss += loss.item()
# if self.verbose:
# print(f'Epoch {epoch}: | Train Poem Loss: {train_epoch_loss/len(train_dl):.5f}')
# Model.eval()
# with torch.no_grad():
# X_test = torch.from_numpy(data.X_test).float()
# pred = Model(X_test)
# est_best_policy = actions[torch.argmax(pred, dim=1)]
# self.est_best_policy = est_best_policy.numpy()
# return self
# class CounterfactualRiskMinimizationCV(CounterfactualRiskMinimization, EvaluationMetrics):
# """
# Tune variance regularizer for Counterfactual Risk Minimization.
# Parameters
# ----------
# batch_size : int, default: 96
# The number of samples per batch to load
# learning_rate : float, default: 0.01
# Stochastic gradient descent learning rate
# weight_decay : float, default: 0.001
# L2 regularization on parameters
# clipping: float, default: 100.
# Clipping the importance sample weights. See [1].
# self_normalize: bool, default: True
# Whether to normalize the IPS estimator. See [2].
# verbose: bool, default: True
# Whether to print Poem Loss during training .
# lambda_ : 1D array, optional, defaults to grid of values
# chosen in a logarithmic scale between 1e-4 and 1e+01.
# """
# def __init__(self, batch_size: int = 96, learning_rate: float = 0.01, weight_decay: float = 0.001,
# clipping : float = 100., self_normalize: bool = True, verbose: bool = False,
# lambda_: np.ndarray = None) -> None:
# self.batch_size = batch_size
# self.learning_rate = learning_rate
# self.weight_decay = weight_decay
# self.clipping = clipping
# self.self_normalize = self_normalize
# self.verbose = verbose
# if lambda_ is None:
# self.lambda_ = 10 ** np.linspace(-4., 1., 10) # search in log scale
# else:
# self.lambda_= lambda_
# def __repr__(self) -> str:
# items = ("%s = %r" % (k, v) for k, v in self.__dict__.items())
# return "<%s: {%s}>" % (self.__class__.__name__, ', '.join(items))
# def _get_params_min_loss(self, x):
# x = x.numpy()
# xmin_idx = np.unravel_index(x.argmin(), x.shape)
# l_best = self.lambda_[xmin_idx[0]]
# return l_best
# def learn_policy(self, model, data, valid_frac: float = 0.5, epochs: int = 500) -> None:
# """
# Parameters
# ----------
# data : STBT object
# This must be a Supervised to Bandit Transform (STBT) class with fitted
# `generate_batch` method.
# valid_frac : float, default: 0.5
# Fraction of training data set for validation. Test data are not modified.
# epochs : int, default: 500
# Number of training epochs.
# Returns
# -------
# int.
# The predicted best policy.
# """
# self.epochs = epochs
# self.valid_frac = valid_frac
# rp = RewardPredictor().learn_policy(data=data, max_iter=1000)
# n_train_samples, n_features = data.X_train.shape
# idx_valid_samples = np.random.choice(range(n_train_samples),
# size = int(np.floor(n_train_samples * valid_frac)), replace = False)
# train_ds = BanditDataset(torch.from_numpy(np.delete(data.X_train, idx_valid_samples, axis=0)).float(),
# torch.from_numpy(np.delete(data.y_train_logging, idx_valid_samples)).long(),
# torch.from_numpy(np.delete(data.train_logging_prob, idx_valid_samples)).float(),
# torch.from_numpy(np.delete(data.train_logging_reward, idx_valid_samples)).long(),
# torch.from_numpy(np.delete(data.y_train_logging_idx, idx_valid_samples, axis=0)).bool(),
# torch.from_numpy(np.delete(rp.train_pred_reward_arr, idx_valid_samples, axis=0)).float()
# )
# valid_ds = BanditDataset(torch.from_numpy(data.X_train[idx_valid_samples, :]).float(),
# torch.from_numpy(data.y_train_logging[idx_valid_samples]).long(),
# torch.from_numpy(data.train_logging_prob[idx_valid_samples]).float(),
# torch.from_numpy(data.train_logging_reward[idx_valid_samples]).long(),
# torch.from_numpy(data.y_train_logging_idx[idx_valid_samples, :]).bool(),
# torch.from_numpy(rp.train_pred_reward_arr[idx_valid_samples, :]).float()
# )
# y_train = np.delete(data.y_train, idx_valid_samples, axis=0)
# y_valid = data.y_train[idx_valid_samples]
# X_test = torch.from_numpy(data.X_test).float()
# actions = torch.unique(train_ds.y)
# n_actions = len(actions)
# train_dl = DataLoader(train_ds, self.batch_size)
# valid_dl = DataLoader(valid_ds, self.batch_size)
# Model = model(n_features=n_features, n_actions=n_actions)
# optimizer = torch.optim.SGD(Model.parameters(), lr=self.learning_rate, weight_decay=self.weight_decay)
# self.train_tot_loss_hist = torch.zeros(len(self.lambda_), epochs)
# self.valid_tot_loss_hist = torch.zeros(len(self.lambda_), epochs)
# self.valid_acc = torch.zeros(len(self.lambda_), epochs)
# self.train_acc = torch.zeros(len(self.lambda_), epochs)
# self.test_acc = torch.zeros(len(self.lambda_), epochs)
# for l_idx, l in enumerate(self.lambda_):
# for epoch in range(epochs):
# Model.train()
# train_epoch_loss = 0.
# for x_batch, y_batch, p0_batch,r_batch,y_idx_batch,r_pred_batch in train_dl:
# pi = Model(x_batch)
# loss = self._poem_loss(pi, p0_batch, r_batch, r_pred_batch, y_idx_batch, l, self.self_normalize)
# loss.backward()
# optimizer.step()
# optimizer.zero_grad()
# train_epoch_loss += loss.item()
# self.train_tot_loss_hist[l_idx, epoch] = train_epoch_loss/len(train_dl)
# if self.verbose:
# print(f'Epoch: {epoch} | Train Poem Loss: {train_epoch_loss/len(train_dl):.5f}')
# Model.eval()
# with torch.no_grad():
# valid_tot_loss=0.
# for x_batch,y_batch,p0_batch,r_batch,y_idx_batch,r_pred_batch in valid_dl:
# pi = Model(x_batch)
# valid_loss = self._poem_loss(pi, p0_batch, r_batch, r_pred_batch, y_idx_batch, l, self.self_normalize)
# valid_tot_loss += valid_loss.item()
# self.valid_tot_loss_hist[l_idx, epoch] = valid_tot_loss/len(valid_dl)
# if self.verbose:
# print(f'Epoch: {epoch} | Valid Poem Loss: {valid_tot_loss/len(valid_dl):.5f}')
# pred_train = Model(train_ds.X)
# est_best_policy_train = actions[torch.argmax(pred_train, dim=1)]
# est_best_policy_train = est_best_policy_train.numpy()
# self.train_acc[l_idx, epoch] = self.error_rate(est_best_policy_train, y_train)
# pred_valid = Model(valid_ds.X)
# est_best_policy_valid = actions[torch.argmax(pred_valid, dim=1)]
# est_best_policy_valid = est_best_policy_valid.numpy()
# self.valid_acc[l_idx, epoch] = self.error_rate(est_best_policy_valid, y_valid)
# pred_test = Model(X_test)
# est_best_policy_test = actions[torch.argmax(pred_test, dim=1)]
# est_best_policy_test = est_best_policy_test.numpy()
# self.test_acc[l_idx, epoch] = self.error_rate(est_best_policy_test, data.y_test)
# self.l_best = self._get_params_min_loss(self.valid_tot_loss_hist)
# crm = CounterfactualRiskMinimization(lambda_=self.l_best, batch_size = self.batch_size,
# learning_rate = self.learning_rate, weight_decay = self.weight_decay,
# clipping = self.clipping, self_normalize = self.self_normalize, verbose = self.verbose)
# crm.learn_policy(model=model, data=data, epochs=epochs)
# self.est_best_policy = crm.est_best_policy
# return self
# def plot_cv_loss(self):
# train_loss_flatten = self.train_tot_loss_hist.T.flatten(1).numpy()
# valid_loss_flatten = self.valid_tot_loss_hist.T.flatten(1).numpy()
# train_acc_flatten = self.train_acc.T.flatten(1).numpy()
# valid_acc_flatten = self.valid_acc.T.flatten(1).numpy()
# test_acc_flatten = self.test_acc.T.flatten(1).numpy()
# fig, axs = plt.subplots(2, 3)
# fs = 8
# for l_idx, l in enumerate(self.lambda_):
# axs[0, 0].plot(train_loss_flatten[:,l_idx], label = round(l, 4))
# axs[0, 1].plot(valid_loss_flatten[:,l_idx], label = round(l, 4))
# axs[1, 0].plot(train_acc_flatten[:,l_idx], label = round(l, 4))
# axs[1, 1].plot(valid_acc_flatten[:,l_idx], label = round(l, 4))
# axs[1, 2].plot(test_acc_flatten[:,l_idx], label = round(l, 4))
# axs[0, 0].set_title("Train: Poem Loss", fontsize=fs)
# axs[0, 1].set_title("Validation: Poem Loss", fontsize=fs)
# axs[1, 0].set_title("Train: Accuracy", fontsize=fs)
# axs[1, 1].set_title("Validation: Accuracy", fontsize=fs)
# axs[1, 2].set_title("Test: Accuracy", fontsize=fs)
# for i, ax in enumerate(axs.flat):
# if i < 2:
# ax.set_xlabel(xlabel='Epoch', fontsize=fs)
# ax.set_ylabel(ylabel='Loss', fontsize=fs)
# else:
# ax.set_xlabel(xlabel='Epoch', fontsize=fs)
# ax.set_ylabel(ylabel='Accuracy', fontsize=fs)
# fig.legend(self.lambda_, loc='upper right', fontsize=fs)
Read data¶
np.random.seed(1)
X, y = get_data(dataset= 'glass')
Perform Supervised-to-Bandit Conversion¶
Performs Supervised to Bandit Conversion for classification datasets. This conversion is generally used to test the limits of counterfactual learning in a well-controlled environment.
Here, we take a supervised dataset with features x and labeled classes y, and simulate a bandit feedback data set from a logging policy. Basically, this involves: (i) simulating a stochastic logging policy, which may be uniform (logging_type=’uniform’), or given as a function of covariates (logging_type = ‘biased’), (ii) when the logging policy for a given observation equals the optimal policy (true label), a positive reward is observed.
data = STBT(train_frac= 0.5, logging_type='biased').generate_batch(X, y, max_iter=1000)
Skyline¶
Best possible error rate, assuming we have full feedback (this can only be tested from the simulation as in practice as we have bandit feedback)x.
clf = LogisticRegressionCV(multi_class='multinomial', max_iter=2000).fit(data.X_train, data.y_train)
optimal_policy = clf.predict(data.X_test)
print("Skyline Error:", EvaluationMetrics.error_rate(optimal_policy, data.y_test))
Skyline Error: 0.30841121495327106
## Reward Predictor (RP)
rp = RewardPredictor()
rp.learn_policy(data, max_iter=1000)
print("Reward Predictor Error:", rp.error_rate(rp.est_best_policy, data.y_test))
Reward Predictor Error: 0.7009345794392523
## Outcome Weighted Learning (OWL)
owl = OutcomeWeightedLearning()
owl.learn_policy(data, clf = 'LogisticRegressionCV', max_iter=1000)
print("OWL-LR:", owl.error_rate(owl.est_best_policy, data.y_test))
OWL-LR: 0.7289719626168225
Counterfactual Risk Minimization (CRM)¶
crm = CounterfactualRiskMinimization(verbose=True, lambda_ = 1e-06)
crm.learn_policy(model=LinearModel, data=data, epochs = 2000)
print("CRM:", crm.error_rate(crm.est_best_policy, data.y_test))
Epoch 0: | Train Poem Loss: -0.10087
Epoch 100: | Train Poem Loss: -0.23397
Epoch 200: | Train Poem Loss: -0.37680
Epoch 300: | Train Poem Loss: -0.49386
Epoch 400: | Train Poem Loss: -0.54733
Epoch 500: | Train Poem Loss: -0.57395
Epoch 600: | Train Poem Loss: -0.58959
Epoch 700: | Train Poem Loss: -0.60032
Epoch 800: | Train Poem Loss: -0.60866
Epoch 900: | Train Poem Loss: -0.61578
Epoch 1000: | Train Poem Loss: -0.62223
Epoch 1100: | Train Poem Loss: -0.62831
Epoch 1200: | Train Poem Loss: -0.63413
Epoch 1300: | Train Poem Loss: -0.63967
Epoch 1400: | Train Poem Loss: -0.64488
Epoch 1500: | Train Poem Loss: -0.64968
Epoch 1600: | Train Poem Loss: -0.65401
Epoch 1700: | Train Poem Loss: -0.65786
Epoch 1800: | Train Poem Loss: -0.66122
Epoch 1900: | Train Poem Loss: -0.66412
CRM: 0.719626168224299
Experiments¶
## Params
B = 10 # Number of simulations
EPOCHS = 500
LOGGING_TYPE = 'biased'
MODEL = LinearModel
LAMBDA = 1e-06
DATASETS = ['ecoli', 'glass', 'lymphography', 'yeast', 'digits', 'breast-cancer', 'wine', 'letter-recognition']
dat = list()
skyline_error = list()
randomized_error = list()
reward_predictor_error = list()
owl_lrcv_error = list()
crm_error = list()
for s in DATASETS:
X, y = get_data(dataset=s)
for b in range(B):
if (b % 10) == 0:
print("Sample: %d - Dataset: %s" % (b, s))
d = STBT(logging_type = LOGGING_TYPE).generate_batch(X, y, max_iter=1000)
dat.append(s)
skyline = LogisticRegression(multi_class='multinomial', max_iter=2000).fit(d.X_train, d.y_train)
optimal_policy = skyline.predict(d.X_test)
rp = RewardPredictor().learn_policy(data=d, max_iter=1000)
erm_lrcv = OutcomeWeightedLearning().learn_policy(data=d, clf = 'LogisticRegressionCV', max_iter=1000)
crm = CounterfactualRiskMinimization(lambda_=LAMBDA).learn_policy(model=MODEL, data=d, epochs=EPOCHS)
skyline_error.append(EvaluationMetrics.error_rate(optimal_policy, d.y_test))
randomized_error.append(EvaluationMetrics.error_rate(d.y_test_logging, d.y_test))
reward_predictor_error.append(rp.error_rate(rp.est_best_policy, d.y_test))
owl_lrcv_error.append(erm_lrcv.error_rate(erm_lrcv.est_best_policy, d.y_test))
crm_error.append(crm.error_rate(crm.est_best_policy, d.y_test))
Sample: 0 - Dataset: ecoli
/usr/local/lib/python3.7/dist-packages/sklearn/model_selection/_split.py:667: UserWarning: The least populated class in y has only 4 members, which is less than n_splits=5.
% (min_groups, self.n_splits)), UserWarning)
/usr/local/lib/python3.7/dist-packages/sklearn/model_selection/_split.py:667: UserWarning: The least populated class in y has only 4 members, which is less than n_splits=5.
% (min_groups, self.n_splits)), UserWarning)
Sample: 0 - Dataset: glass
Sample: 0 - Dataset: lymphography
Sample: 0 - Dataset: yeast
/usr/local/lib/python3.7/dist-packages/sklearn/linear_model/_logistic.py:940: ConvergenceWarning: lbfgs failed to converge (status=1):
STOP: TOTAL NO. of ITERATIONS REACHED LIMIT.
Increase the number of iterations (max_iter) or scale the data as shown in:
https://scikit-learn.org/stable/modules/preprocessing.html
Please also refer to the documentation for alternative solver options:
https://scikit-learn.org/stable/modules/linear_model.html#logistic-regression
extra_warning_msg=_LOGISTIC_SOLVER_CONVERGENCE_MSG)
/usr/local/lib/python3.7/dist-packages/sklearn/linear_model/_logistic.py:940: ConvergenceWarning: lbfgs failed to converge (status=1):
STOP: TOTAL NO. of ITERATIONS REACHED LIMIT.
Increase the number of iterations (max_iter) or scale the data as shown in:
https://scikit-learn.org/stable/modules/preprocessing.html
Please also refer to the documentation for alternative solver options:
https://scikit-learn.org/stable/modules/linear_model.html#logistic-regression
extra_warning_msg=_LOGISTIC_SOLVER_CONVERGENCE_MSG)
/usr/local/lib/python3.7/dist-packages/sklearn/linear_model/_logistic.py:940: ConvergenceWarning: lbfgs failed to converge (status=1):
STOP: TOTAL NO. of ITERATIONS REACHED LIMIT.
Increase the number of iterations (max_iter) or scale the data as shown in:
https://scikit-learn.org/stable/modules/preprocessing.html
Please also refer to the documentation for alternative solver options:
https://scikit-learn.org/stable/modules/linear_model.html#logistic-regression
extra_warning_msg=_LOGISTIC_SOLVER_CONVERGENCE_MSG)
Sample: 0 - Dataset: digits
Sample: 0 - Dataset: breast-cancer
Sample: 0 - Dataset: wine
Sample: 0 - Dataset: letter-recognition
res = pd.DataFrame.from_dict({'dataset':dat[1:], 'skyline_error': skyline_error, 'randomized_error':randomized_error, 'reward_predictor_error':reward_predictor_error,
'owl_lrcv_error':owl_lrcv_error, 'crm_error':crm_error})
res_summary = res.groupby(['dataset'], as_index=False).agg({
'skyline_error': ['mean','std'],
'randomized_error': ['mean','std'],
'reward_predictor_error': ['mean','std'],
'owl_lrcv_error': ['mean','std'],
'crm_error': ['mean','std']
})
res_summary
| dataset | skyline_error | randomized_error | reward_predictor_error | owl_lrcv_error | crm_error | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mean | std | mean | std | mean | std | mean | std | mean | std | ||
| 0 | breast-cancer | 0.029123 | 0.009792 | 0.558596 | 0.191854 | 0.026667 | 0.009813 | 0.209825 | 0.162483 | 0.064561 | 0.051467 |
| 1 | digits | 0.036151 | 0.004104 | 0.888432 | 0.054886 | 0.376529 | 0.096568 | 0.529366 | 0.120459 | 0.426251 | 0.111795 |
| 2 | ecoli | 0.132937 | 0.018231 | 0.835714 | 0.093679 | 0.278175 | 0.043127 | 0.397619 | 0.178276 | 0.310714 | 0.080024 |
| 3 | glass | 0.401869 | 0.037642 | 0.825234 | 0.061372 | 0.588785 | 0.103134 | 0.591589 | 0.080883 | 0.629907 | 0.093996 |
| 4 | letter-recognition | 0.228200 | 0.004190 | 0.966280 | 0.011429 | 0.737560 | 0.031631 | 0.713590 | 0.030353 | 0.741250 | 0.028611 |
| 5 | lymphography | 0.168919 | 0.032638 | 0.748649 | 0.075965 | 0.295946 | 0.067553 | 0.347297 | 0.111444 | 0.410811 | 0.119722 |
| 6 | wine | 0.026966 | 0.022596 | 0.723596 | 0.098695 | 0.065169 | 0.047611 | 0.365169 | 0.104097 | 0.158427 | 0.094074 |
| 7 | yeast | 0.411456 | 0.011078 | 0.901482 | 0.024659 | 0.516981 | 0.058388 | 0.606334 | 0.062139 | 0.569946 | 0.045408 |
References¶
[1] A. Swaminathan and T. Joachims, Batch Learning from Logged Bandit Feedback through Counterfactual Risk Minimization, Journal of Machine Learning Research, 16(52), 1731–1755, 2015.
[2] A. Swaminathan and T. Joachims, The self-normalized estimator for counterfactual learning, Advances in Neural Information Processing Systems, 28, 16(52), 3231–3239, 2015.
[3] A. Swaminathan, T. Joachims, and M. de Rijke, Deep Learning with Logged Bandit Feedback, International Conference on Learning Representations, 2018.
[4] Y. Zhao, D. Zeng, A.J. Rush and M. R. Kosorok, Estimating Individualized Treatment Rules Using Outcome Weighted Learning, Journal of the American Statistical Association, 107:499, 1106-1118, 2012, DOI: 10.1080/01621459.2012.695674.
[5] Y. Wang, A. Agarwal and M. Dud’{\i}k, Optimal and Adaptive Off-policy Evaluation in Contextual Bandits, Proceedings of Machine Learning Research, 70, 3589–3597, 2017.
[6] M. Dudik and J. Langford and L. Li, Doubly Robust Policy Evaluation and Learning, CoRR, 2011. http://arxiv.org/abs/1103.4601
[7] K{“u}nzel, S., Sekhon, J., Bickel, P. and Yu, B., Metalearners for estimating heterogeneous treatment effects using machine learning, Proceedings of the National Academy of Sciences, 116(10), 4156–4165, 2019.
[8] Batch Learning from Bandit Feedback (BLBF). https://github.com/leoguelman/BLBF.
